Stainless steel pipe making machine is designed for manufacturing stainless steel straight welded pipe for metallurgy, construction, transportation, and machinery and vehicle industries.
We can also supply the customized machines.

Stainless steel pipe making machine is designed for manufacturing stainless steel straight welded pipe for metallurgy, construction, transportation, and machinery and vehicle industries. It adopts long steel strip as the material to manufacture steel pipes according to requested size by cold rolled forming and argon arc welding method. To be specific, the stainless steel pipe production line can produce round pipe, square and rectangular tube, as well as section steel through cold rolled forming and TIG welding technology.
The machine is designed featuring easy and safe to operate, low maintenance, and cost reduction, reducing and high production. The stainless steel pipe, which allows flatting, forming, welding, annealing, polishing, sizing, straightening, finishing, cutting, and unloading at one time for production.

1. Industrial Steel Pipes

2. Decoration Pipe

SLIT COIL ---- Un-coiler ---- Forming ---- TIG Welding ---- De-beading ---- Grinding ---- Sizing ---- Annealing ---- Sizing ---- Cutting ---- Run out Table ---- Pipe collecting and packaging

•

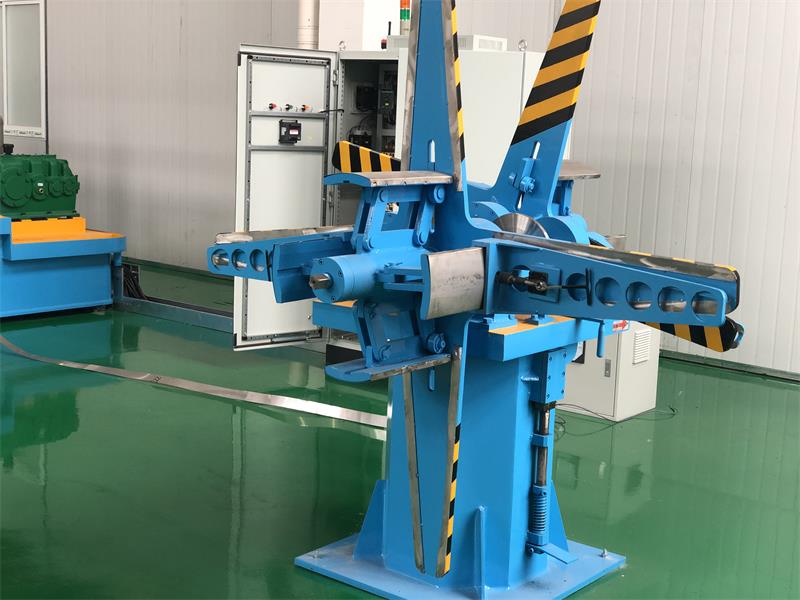

(1) Uncoiler
(2) Forming Section
(3) TIG Welder
(4) Electric Control Panel
(5) Welding Torch Stand
(6) De-beading Section
(7) Seam Grinding
(8) Initial Sizing
(9) Online Bright Annealing
(10) Final Sizing
(11) Cutting Sation
(12) Run out Table

Industry Tube Mill and Decoration Tube Mill can be provided. Unique design, provided with rational structure. Twice heat treatment (quenching & HF) for horizontal shafts, good quality casting via CNC machining. The machine is consist of heavy platform, accurate roller stands, XY or XYZ welding torch stand and SS made seam grinding cases. Siemens brand electrical elements mainly used, PLC and touch screen are also available. Online heat treatment & de-beading system can be connected with tube mill.

A. Parameters of Industry Tube Mill

Title	GRTS30	GRTS40	GRTS50	GRTS60	GRTS80	GRTS100	GRTS110
OD (mm)	Φ5-20	Φ8-45	Φ25-Φ76	Φ50.8-Φ114	Φ89-Φ159	Φ114-Φ219	Φ114-Φ325
WT (mm)	δ0.3-δ1.2	δ0.3-δ2.5	δ0.5-δ3	δ0.6-δ3.5	δ1-δ4	δ1.5-δ5	δ1.5-δ8
Speed (m/min)	2-9	0.6-6	0.6-4	0.6-4	0.5-3	0.5-2	0.4-1.6
Frequency Conversion Driving Motor (kw)	4kw	7.5+5.5	11+7.5	15+11	18.5+15	22+15	22+18.5
Seam Grinding Unit	3kwx 1	3kw x N	3kw x N	3kw x N	3kw x N	3kw x N	3kw x N
Transmission	Gear Box	Gear Box	Gear Box	Gear Box	Gear Box	Gear Box	Gear Box
M/C Length (m)	5	7.8	8.5	9	13	14	17
Remark:	A, Extra order of online de-beading & heat treatment system is available; B, Vertical or horizontal type decoiler is available; C, Abrasive wheel cutting (fast rotation) or saw blade (slow rotation with water cooling, oil & air mixed) cutting or saw cutting is available; D, Cutting sta. or rolling system is available for RTS20; E, Strengthened type or synchronization type roller stands is available. F, Extra order of TIG (argon arc) welder or plasma welder is available; G, Special design in term of client's requirement is available.

B. Parameters of Decoration Tube Mill

Title	RTS20	SRTS40	RTS40	RTS50	RTS60
OD (mm)	Φ4~Φ15	Φ6~Φ32	Φ8~Φ48	Φ38~Φ76	Φ50.8~Φ114
WT (mm)	δ0.2~δ0.8	δ0.17~δ1.2	δ0.18~δ2	δ0.4~δ2.5	δ0.5~δ3
Speed (m/min)	2~12	2~15	2~15	3~12	3~10
Driving Motor (kw)	3	5.5	7.5	11	15
Seam Grinding Unit	N/A	3kw x N	3kw x N	3kw x N	3kw x N
Transmission	Gear Box	Worm Gear Box	Worm Gear Box	Worm Gear Box	Worm Gear Box
M/C Length (m)	2.4	6	6.5	7.5	8.5
Remark:	A, Special design in term of client's requirement is available; B, Vertical or horizontal type decoiler is available; C, Abrasive wheel cutting (fast rotation) or saw blade (slow rotation with water cooling, oil & air mixed) cutting or saw cutting is available; D, Auto cutting or rolling system is available on RTS20; E, Frequency conversion or speed adjustable motor is available for driving power; F, Extra order of TIG (argon arc) welder or plasma welder is available.
