RT50 Pipe Mill Line – 63mm×2.5mm
Name: Pipe Mill Line
Model: RT50 (63mm×2.5mm)
We can also supply the customized machines.

  • Features:

RT50 HF Tube Mills is a series of machines that builds longitudinal weld seam pipe with steel strips of certain width. It starts by uncoil and flatten the slit steel coils into steel strips. The flattened steel strips will be inserted into the forming machine and the rollers in the machine will bend the strip to a round pipe shape. The round pipe will then be sent into the weld box where the tube is welded by a high frequency or solid state welder. The welded pipe will be formed to expected shape (round/ square/ rectangle etc) or size in a sizing machine. Finally the pipe will be cut to length and bundled.

  • Applications:

1. Water Pipe

2. Heating Pipe

3. Low-pressure Process Pipeline

4. Low Pressure Fire Fighting Pipeline

5. Sewage Pipes

6. Steel Scaffolding Pipe

7. Wire and Cable Protection Pipe

8. Structural Support Steel Pipe

9. Industrial Steel Pipes

10. Decoration Pipe

11. Oil & Gas Pipes

  • Process Flow:

Slit Coil ---- Un-Coiler ---- Shearing And Butt Welder ---- Storage / Accumulator ---- Forming ---- Welding ---- Cooling ---- Sizing ---- Cutting Saw ---- Run Out Table ---- Finishing ---- Pipe Collecting and Packaging

  • Working Flow Chart for RT Series Pipe-making Machine
  • Machine Configurations:

Entry Section

Double Side Un-Coiler

Manual Expand

Hydraulic Expand

Shear & Butt Welder

Manual

Automatic

Accumulator

Vertical

Horizontal

Forming Section

Leveling Unit

7-Roller

Round Shape Forming

Normal

Cassette-Bed Quick Change

Welding Section

Guide Roll Stand

1 Set

Extruding Roll Stand

1 Set

Scraper Frame

2 Sets

H.F. Welder

Solid State

Cooling Unit

Water Cooling Tank

Sizing & Straightening Section

Sizing Unit

Normal

Cassette-Bed Quick Change

Turk’s Head

2 Stations

Measuring Roll Stand

With Encoder

Flying Cutting Saw

Pneumatic Friction Saw

Flying Cold Saw

Run-out Table

Single Side

Double Side
  • Photos for Reference:
    1. Double Side Un-coiler (Manual)
      Double Side Un-coiler (Manual)
    2. Double Side Un-coiler (Hydraulic)
      Double Side Un-coiler (Hydraulic)
    3. Automatic Shear & Butt Welder
      Automatic Shear & Butt Welder

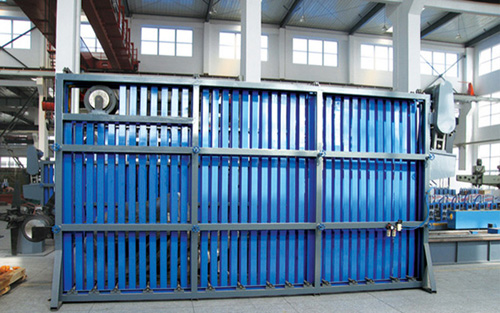

    1. Vertical Accumulator
      Vertical Accumulator
    2. Horizontal Accumulator
      Horizontal Accumulator
    3. Forming Section
      Forming Section
    1. Sizing Section
      Sizing Section
    2. Cassette-Bed Quick Change
      Cassette-Bed Quick Change
    3. Pneumatic Friction Saw
      Pneumatic Friction Saw
    1. Flying Cold Saw
      Flying Cold Saw
    2. Run-out Table
      Run-out Table
  • Optional Models:

Model

Diameter of Welded Tubes

Wall Thickness of Round Tube

Max. Size of Square Tube

Max. Size of Rec. Tube

Wall Thickness of Sq & Rec Tube

Speed of Tube Welding

Power of Major Motor

High Frequency Power

RT16

8-25mm

0.3-1.0mm

20x20mm

12.7x25.4mm

0.3-0.8mm

30-110m/min

37KW

100KW

RT25

8-32mm

0.4-1.3mm

25x25mm

20x30mm

0.4-1.0mm

30-110m/min

45KW

100KW

RT25
High Speed

8-32mm

0.4-1.3mm

25x25mm

20x30mm

0.4-1.0mm

30-130m/min

55KW

150KW

RT32

10-40mm

0.5-1.8mm

30x30mm

20x40mm

0.5-1.4mm

30-100m/min

90KW

150KW

RT32
High Speed

13-40mm

0.5-1.8mm

30x30mm

20x40mm

0.5-1.4mm

30-130m/min

132KW

150KW

RT45

13-50.8mm

0.6-2.3mm

40x40mm

30x50mm

0.6-1.7mm

30-100m/min

110KW

150KW

RT45
High Speed

13-50.8mm

0.6-2.0mm

40x40mm

30x50mm

0.6-1.5mm

30-130m/min

160KW

150KW

RT50

19-63.5mm

0.7-2.75mm

50x50mm

40x60mm

0.7-2.2mm

30-100m/min

160KW

200KW

RT50
High Speed

19-63.5mm

0.7-2.5mm

50x50mm

40x60mm

0.7-2.0mm

30-130m/min

220KW

200KW

RT50 to 76

19-76mm

0.7-2.75mm

60x60mm

40x80mm

0.7-2.2mm

30-100m/min

160KW

200KW

RT50 to 76 High Speed

19-76mm

0.7-2. 5mm

60x60mm

40x80mm

0.7-2.0mm

30-130m/min

220KW

200KW

RT60

19-63.5mm

0.8-3.5mm

50x50mm

40x60mm

0.8-2.7mm

30-90m/min

185KW

250KW

RT60
High Speed

19-63.5mm

0.8-3.0mm

50x50mm

40x60mm

0.8-2.5mm

30-120m/min

250KW

300KW

RT60 to 76

19-76mm

0.8-3.5mm

60x60mm

40x80mm

0.8-2.7mm

30-90m/min

200KW

250KW

RT60 to 76 High Speed

19-76mm

1.0-3.0mm

60x60mm

40x80mm

0.8-2.5mm

30-120m/min

250KW

300KW

RT60
to 100

22-100mm

1.0-3.0mm

76.2x76.2mm

50.8x101.6mm

1.0-2.5mm

30-80m/min

200KW

250KW

RT76

25-90mm

1.0-4.0mm

70x70mm

60x80mm

1.0-3.2mm

30-70m/min

110KWx2

300KW

RT76
High Speed

25-90mm

1.0-4.0mm

70x70mm

60x80mm

1.0-3.2mm

30-100m/min

160KWx2

400KW

RT76 to 127

32-127mm

1.2-4.0mm

100x100mm

80x120mm

1.2-3.0mm

30-70m/min

110KWx2

300KW

RT90

32-127mm

1.5-4.5mm

100x100mm

80x120mm

1.5-3.5mm

20-60m/min

132KWx2

400KW

RT90 to 140

32-140mm

1.5-4.5mm

110x110mm

100x120mm

1.5-3.5mm

20-60m/min

132KWx2

400KW

RT115

48-127mm

1.5-5.0mm

100x100mm

80x120mm

1.5-4.0mm

20-60m/min

160KWx2

400KW

RT115
to 140

48-140mm

1.5-5.0mm

110x110mm

100x120mm

1.5-4.0mm

20-60m/min

160KWx2

400KW

RT115
to 165

48-165mm

1.8-5.0mm

130x130mm

120x140mm

1.8-4.0mm

20-60m/min

160KWx2

400KW

RT165

50.8-165mm

2.0-6.0mm

130x130mm

120x140mm

2.0-5.0mm

15-50m/min

200KWx2

500KW

RT165
to 219

76-219mm

2.0-6.0mm

170x170mm

140x200mm

2.0-5.0mm

15-45m/min

200KWx2

500KW

RT219

89-219mm

2.5-8.0mm

170x170mm

140x200mm

2.5-6.0mm

12-35/min

220KWx2

600KW

RT273

102-273mm

2.5-10.0mm

210x210mm

180x240mm

2.5-8.0mm

10-30m/min

250KWx2

800KW

RT355

219-355mm

4.0-12.0mm

280x280mm

260x300mm

4.0-10.0mm

10-30m/min

250KWx2
200KWx2

1200KW
