YX Series Rock Wool/EPS/XPS Sandwich Panel Line
Name: Rock Wool/EPS/XPS Sandwich Panel Line
Model: YX Series
We can also supply the customized machines.

Panel from the continuous sandwich panel production line is a composite structure consisting of two external facings and an insulating core. The core can be flexible with Polyurethane, Rock Wool, Glass Wool, PIR, Phenolic or EPS. Various profiles are available according to customer's requirement with pre-painted steel sheets, PVC sheets, Aluminum paper or other similar supports.
The continuous sandwich panel production line has a large scale production capacity. It allows a uniform distribution of the reactive mixture, a homogeneous density, suitable physical and mechanical characteristics.
Roof panels, wall panels and door panels are made mainly of metal section support and polyurethane insulating mass.
The capacity of the continuous line is 3-7m/min, length of the production line is 100m. the size of the final panel is 3-18m long, 900-1200mm wide, 20-150mm thick, the valid length of double belt conveyor is 24m, the total power is 300KW.

This product mainly provides clean rooms, operation rooms and clean workshops with complete fireproof and anti-static clean system, including walls, suspended ceilings and anti-static workbenches, etc.
In full consideration of static prevention, cleanness, fire prevention and other professional demands, take beautiful appearance, moisture resistance, acoustic performance, durability and other physical and chemical properties into account for the purpose of providing perfect safety protection system.

Decoiling ---- Leveling ---- Punching ---- Roll Forming ---- Cutting ---- Rou out Table

•
•

1. Upper Decoiler	2. Lower Decoiler
3. Upper Roll Former	4. Lower Roll Former
5. Rock Wool Auto Feeding	6. Glue Sprayer
7. Double Belt Machine	8. PU Injection
9. Band Saw Cutter	10. Conveyor
11. Auto Stacking Machine	12. Wrapping Machine

•
•

1. Hydraulic Decoiler	2. Roll Forming Machine
3. Rock Wool/EPS/XPS Auto Feeding	4. Edge Milling
5. Z-lock Roll Forming	6. Glue Sprayer
7. Sandwich Panel Laminator	8. Film Cutting
9. Band Saw Cutter	10. Conveyor
11. Auto Stacker	12. Wrapping Machine

1.

   Uncoiler

2.

   Roll Forming Machine

3.

   Rock Wool Raising

1.

   Rock Wool Slitting Machine

2.

   Rock Wool Turning Over Machine

3.

   Rock Wool Slanting Cutting Machine

1.

   EPS-XPS Auto Feeding

2.

   Sandwich Panel Laminator 1

3.

   Sandwich Panel Laminator 2

1.

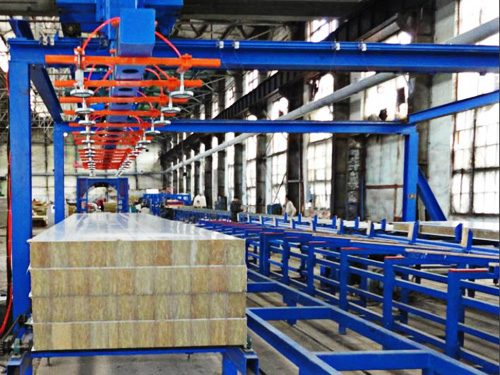

   Stacking Machine

2.

   Stretch Wrapping Device
