Corrugate/Sinusoidal Forming Machine

We can also offer the FINISHED PRODUCTS for kinds of special profiles according to customers’ drawings, such as:

1. fireproof and heat insulation door and window partition

2. fireproof curtain wall according to customers’ drawings

3. Photovoltaic Solar support

YX Series Corrugate/Sinusoidal Forming Machine
Name: Corrugate/Sinusoidal Forming Machine
Model: YX Series
We can also supply the customized machines.

Features:

Different corrugate/sinusoidal forming machine can produce different shapes of steel corrugate/sinusoidal sheets according to the client's profile drawings and requirements. The steel corrugate/sinusoidal sheets are new building materials with various thickness and colors.

Applications:

The finished products are used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, exhibition centers etc.

Process Flow:

Uncoiler --- Entry Bench --- Pre-Shearing --- Roll Forming --- Cutting --- Exit Rack

Machine Configurations:

1. (5+1) Ton×1250 Hydraulic Expand Uncoiler with Coil Car	2. Entry Bench
3. Manual Pre-shearing Device	4. Polythene Film-on Device
5. Cold Roll Forming Line	6. Hydraulic Cutting Machine
7. PLC Control System	8. Inkjet Printer
9. Exit Rack

Option:

Profile Drawings for Reference:

Photos for Reference:

Hydraulic Expand Uncoiler with Coil Car

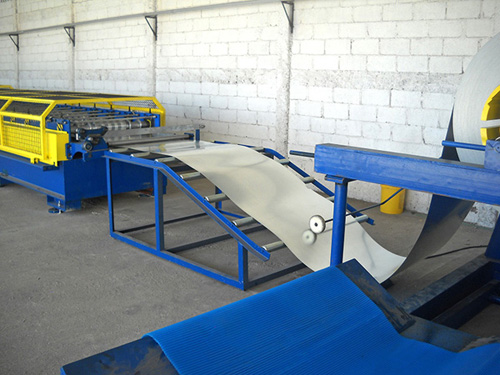

Entry Bench & Manual Pre-shearing Device
Forming Machine 1

Forming Machine 2
Hydraulic Cutting Machine
Exit Rack

Curving Machine
Sample
