• We can also offer the FINISHED PRODUCTS for kinds of special profiles according to customers’ drawings, such as:

1. fireproof and heat insulation door and window partition

2. fireproof curtain wall according to customers’ drawings

3. Photovoltaic Solar support

• Product Describe:

Steel grain storage silo, in another name is corn storage silos or steel grain storage silos, which is used for farm purpose, rice mill, flour mill, soybean-oil mill, animal feed mill plant, brewery plant and so on, the corn maize steel grain storage silo can be used to store grain (such as corn, maize, bulk wheat, corn, rice, paddy, sorghum, soya etc.), animal feed, cereal seeds, plastic pellet, wooden pellet etc.

The silo roll forming machine is mainly for processing the galvanized steel material into the corrugated shape with the thickness less than 3mm. It can also be used as tank.

When the thickness as 8 or 10mm, the corrugated shape can be used as culvert.

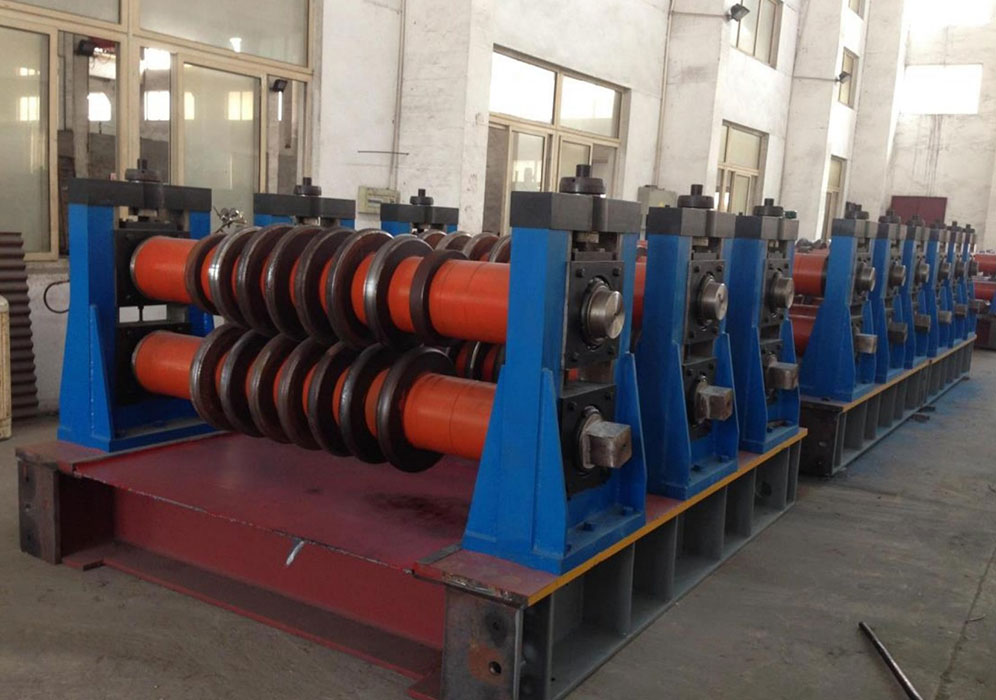

The production line (Cold Rolled Steel Silo Roll Forming Machine) is a fully automatic granary board production line, with functions such as automatic length determination, servo motor control of uninterrupted punching, bending and cutting.

The whole machine is composed of a loading and uncoiling system (uncoiler), a steel plate clamping and leveling system (pinch roll and leveler), a servo punching system, a cutting system, a cold bending forming system (curving), a feeding system (run-out) and a hydraulic system, an automatic control system, etc. equipment.

• Photo for Reference:

• Application:

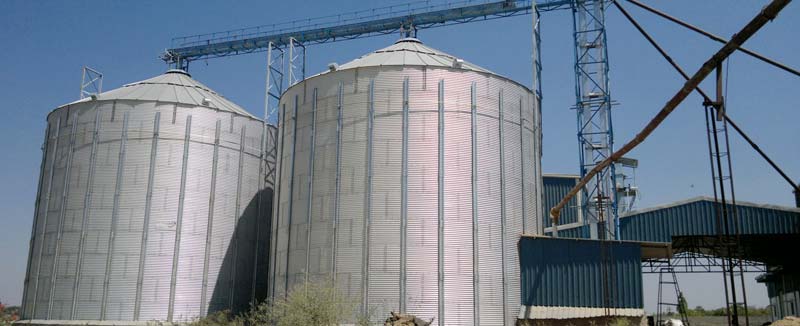

Flat-Bottom-Silo






Grain-Storage-Silo






Hopper-Bottom-Silo






Hopper-Bottom-Silo






Tasavial-miniplate






Tasavial-Miniplate2






Tasavial-Miniplate2
