Standing Seam Profile Roll Formers

We can also offer the FINISHED PRODUCTS for kinds of special profiles according to customers’ drawings, such as:

1. fireproof and heat insulation door and window partition

2. fireproof curtain wall according to customers’ drawings

3. Photovoltaic Solar support

YX Series Standing Seam Profile Roll Formers
Name: Standing Seam Profile Roll Formers
Model: YX Series
We can also supply the customized machines.

Features:

This auto tapered and straight seam profile roll formers is used to form the pre-painted sheet/GI/GA and aluminum material to be the standing seam.
Standing Seam Profile Roll Formers is composed of the hydraulic un-coiler, polythene film-on device, motorized lateral shearing device, longitudinal slitting device, central rib forming unit, taper roll forming machine, hydraulic cutting machine (for straight profile), PLC control system, product rack, auto taper curving machine, etc.

Applications:

The finished products are used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, exhibition centers etc.

Process Flow:

Uncoiler --- Film --- Shearing --- Slitting Device --- Rib Forming --- Roll Forming --- Cutting --- Exit Rack --- Seaming

Machine Configurations:

1. 5Ton×800 Hydraulic Expand Uncoiler	2. Polythene Film-On Device
3. Motorized Lateral Shearing Device	4. Longitudinal Slitting Device
5. 3 Stages to Form the Central Rib on the Bottom	6. Taper Roll Formers
7. Hydraulic Cutting Machine	8. PLC Control System
9. Exit Rack	10. Auto Taper Curving Machine

Option:

Profile Drawings for Reference:

Photos for Reference:

Roll Forming

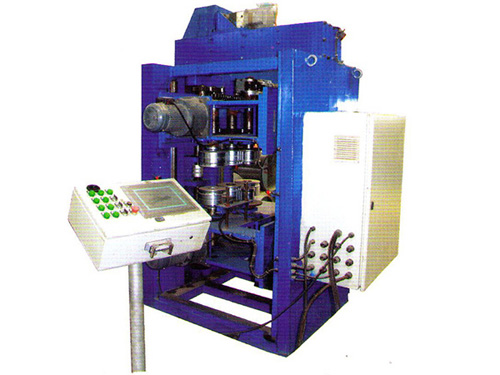

Auto Taper Curving Machine
Sample 1

Sample 2
