RTQS-2×1250 High Speed Slitting Line
Name: High Speed Slitting Line
Model: RTQS-2×1250
We can also supply the customized machines.

This Steel Coil Slitting Line is adaptable to process cold-rolled and galvanized coils, silicon steel coil, stainless coils, pre-painted coils, aluminum coils, and all sorts of plate and coated coils. And it is widely applies to many industries like automobiles, containers, household appliances, food packing, construction material etc.
This line consists of coil lifter, decoiler, slitter, scrap recoiler, damping device, recoiler etc, accompany of feeder, loop bridge, pinch etc.
It has advantage such as proper layout, easy operation, highly automated and high production efficiency.
Complete two slitting machines is optional. When one slitting machine is working, the other one can change blade spacer and sleeve or maintenance and repair, it can improve working efficiency, increase production and decrease cost.

Uncoiler --- Feeding --- Straightening --- Pre-punching --- Roll Forming --- Cutting --- Exit Rack

•

No.	Item	Qty
1	Storage Platform	1 Pcs
2	Coil Lifter	1 Set
3	Hydraulic Cantilever Decoiler	1 Set
4	Snubber Roller	1 Set
5	Pinch Roll & Leveler	1 Set
6	Shearing Machine	1 Set
7	Loop Bridge NO.1	1 Set
8	Side Guide Roller	1 Set
9	Slitting Machine	1 Set
10	Pressing Device for Tail Tension Plate	1 Set
11	Scrap Recoiler	1 Set
12	Loop Bridge NO.2	1 Set
13	Separating Device	1 Set
14	Damping Device	1 Set
15	Pressing Device	1 Set
16	Recoiler	1 Set
17	Hydraulic Support Arm	1 Set
18	Unload Cart	1 Set
19	Hydraulic + Pneumatic System	1 Set
20	Electric System	1 Set

1.

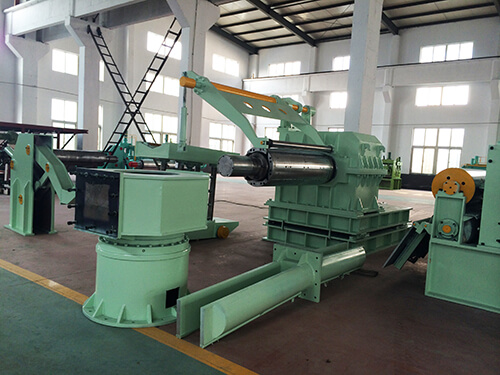

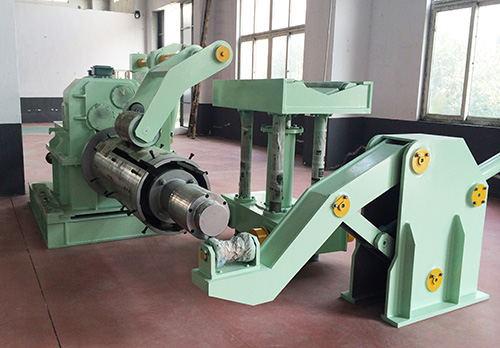

   Decoiler

2.

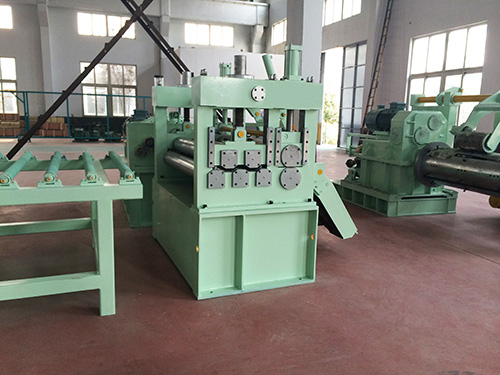

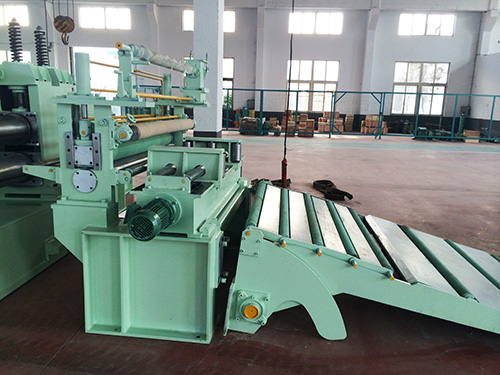

   Pinch Roll + Pre-leveler

3.

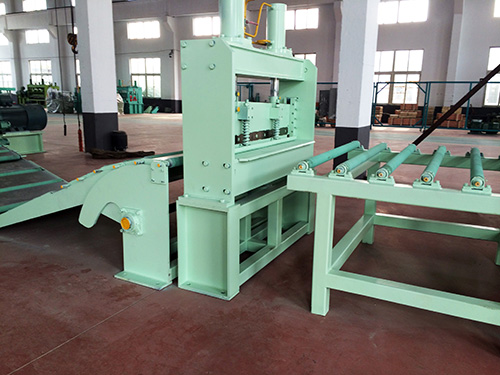

   Shear

1.

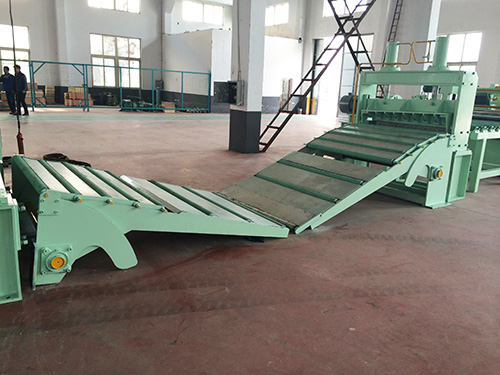

   Loop Bridge

2.

   Side Guide

3.

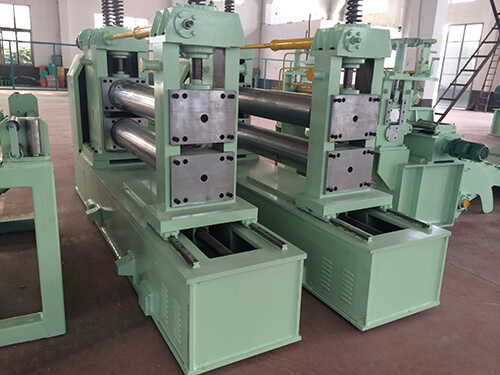

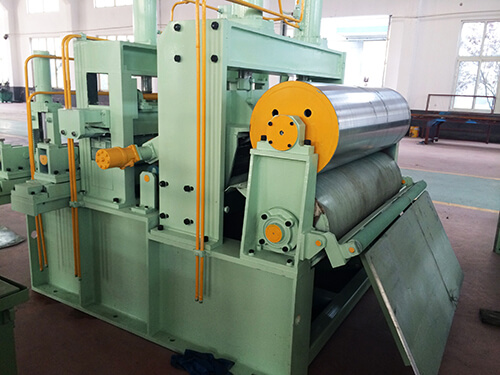

   Slitting Machine

1.

   Scrap Recoiler

2.

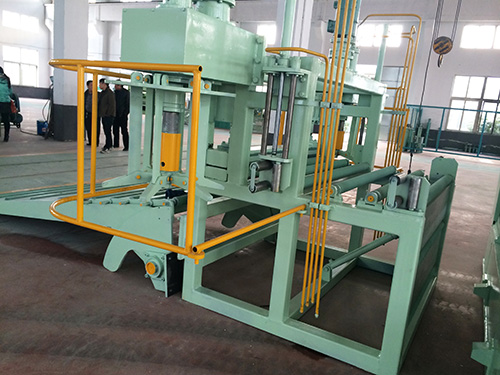

   Damping Unit

3.

   Recoiler

•

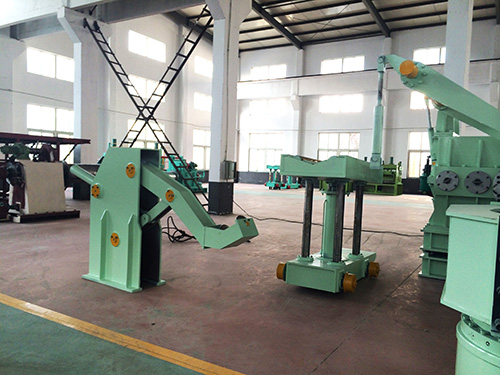

  Unload Cart
