RTQS-3×1600 Precision Slitting Machine
Name: Precision Slitting Machine
Model: RTQS-3×1600
We can also supply the customized machines.

Precision Slitting Machine is used to process metal coils through decoiling, slitting, & turned into steel strips with desired width.
1. This Coil Processing Line is used for slitting steel coils with different specifications (width/thickness) to be needed width strips. The main working flow is: decoiling – leveling – slitting – recoiling.
2. This Steel Slitting Line is reasonable in layout, easy operation, high level of automation, high productivity which could processing all kinds of CR and HR coil, silicon coil, stainless coil, colored coil, galvanize coil or painted coil.
3. This Slitting Recoiling Line is broadly applying in metal plate processing industry, like car, container, household appliance, packing, construction material, etc.
4. It is composed of coil car, decoiler, slitter, scrap recoiler, shearer cutting coil head or tail, tension pad and recoiler, etc. As well as pendulum middle bridge, pinch device.
5. It is an auto coil processing equipment which integrates mechanical, electrical, hydraulic, and pneumatic all together.

•

No.	Item	Qty
1	Storage Platform	1 Pcs
2	Coil Lifter	1 Set
3	Hydraulic Cantilever Decoiler	1 Set
4	Snubber Roller	1 Set
5	Pinch Roll & Leveler	1 Set
6	Shearing Machine	1 Set
7	Loop Bridge NO.1	1 Set
8	Side Guide Roller	1 Set
9	Slitting Machine	1 Set
10	Pressing Device for Tail Tension Plate	1 Set
11	Scrap Recoiler	1 Set
12	Loop Bridge NO.2	1 Set
13	Separating Device	1 Set
14	Damping Device	1 Set
15	Pressing Device	1 Set
16	Recoiler	1 Set
17	Hydraulic Support Arm	1 Set
18	Unload Cart	1 Set
19	Hydraulic + Pneumatic System	1 Set
20	Electric System	1 Set

Material	Cold Rolled Steel Coil; Galvanized Steel Coil Pre-paint Steel Coil; Stainless Steel Coil
Thickness	0.3-3.0mm
Width	1000 / 1250 / 1300 / 1500 / 1600 / 2000mm
Weight	10 / 15 / 20 / 25 T
Speed	0~120m/min

1.

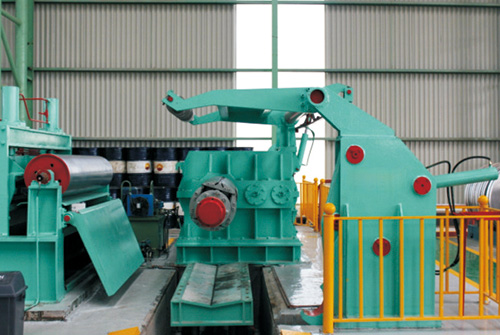

   Hydraulic Decoiler

2.

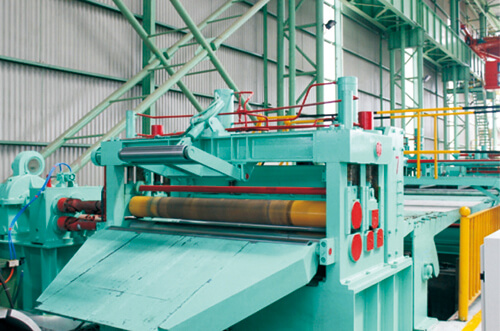

   Pinch Roll + Leveler

3.

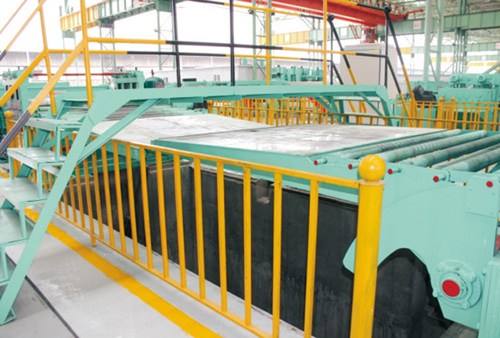

   Loop Bridge

1.

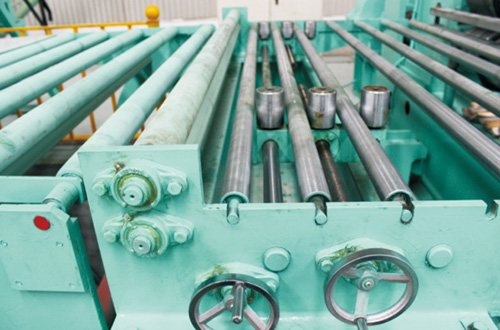

   Side Guide

2.

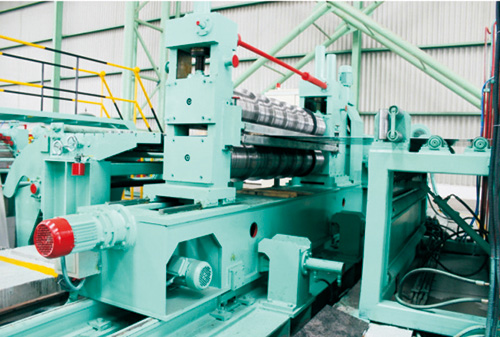

   Slitting Machine

3.

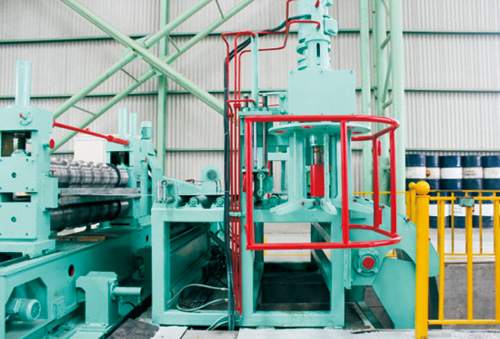

   Scrap Recoiler

1.

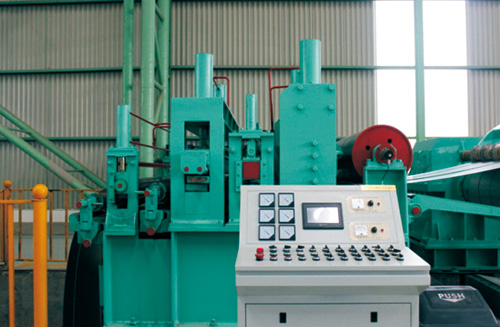

   Damping Device

2.

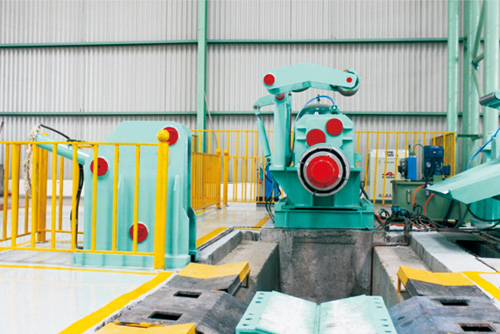

   Recoiler
