RTLS-2×1600 Economic Coil Cutting Line
Name: Economic Coil Cutting Line
Model: RTLS-2×1600
We can also supply the customized machines.

RTLS (0-40m/min slitting speed) Low Speed Slitting Line (i.e. metal coil slitting machine/ slitter line) is used for processing the CR/HR, stainless steel, pre-painted or galvanized steel coils less than 3mm thickness into narrow steel strip coils with desired width.
Then the strips can be used for milling, welding pipe, cold bend forming, stamping as billet. At the same time, changing different material blade can slit various metal coils.
We can also supply the high speed steel Coil Longitudinal Line (0~120m/min), different type of cut to length lines, slitting and cut to length combined line.

•

No.	Item	Qty
1	Storage Platform	1 Pcs
2	Coil Lifter	1 Set
3	Hydraulic Cantilever Decoiler	1 Set
4	Snubber Roller	1 Set
5	Pinch Roll & Leveler	1 Set
6	Shearing Machine	1 Set
7	Loop Bridge NO.1	1 Set
8	Side Guide Roller	1 Set
9	Slitting Machine	1 Set
10	Pressing Device for Tail Tension Plate	1 Set
11	Scrap Recoiler	1 Set
12	Loop Bridge NO.2	1 Set
13	Separating Device	1 Set
14	Damping Device	1 Set
15	Pressing Device	1 Set
16	Recoiler	1 Set
17	Hydraulic Support Arm	1 Set
18	Unload Cart	1 Set
19	Hydraulic + Pneumatic System	1 Set
20	Electric System	1 Set

Material	Cold Rolled Steel Coil; Galvanized Steel Coil Pre-paint Steel Coil; Stainless Steel Coil
Thickness	0.3-3.0mm
Width	1000 / 1250 / 1300 / 1500 / 1600 / 2000mm
Weight	10 / 15 / 20 / 25 T
Speed	0~40m/min

1.

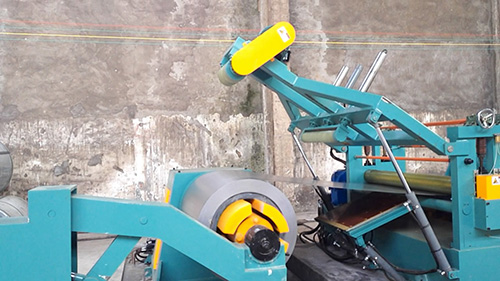

   Decoiler

2.

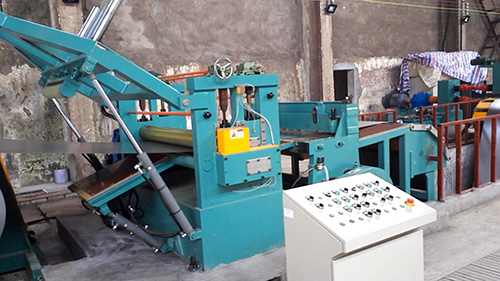

   Snubber Roller

3.

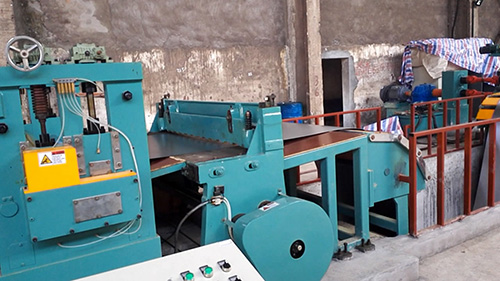

   Shear

1.

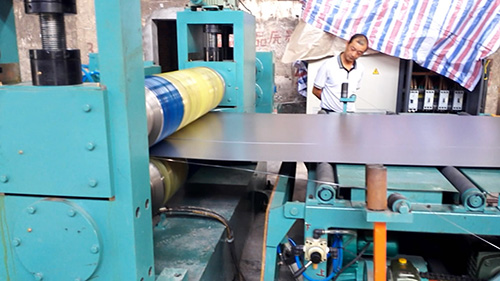

   Loop Bridge + Side Guide

2.

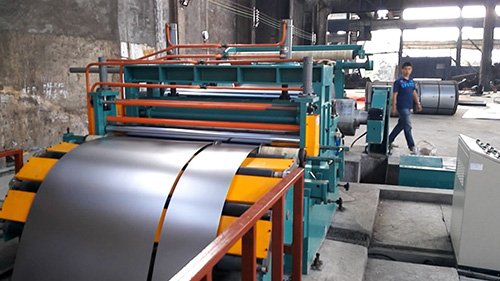

   Slitting

3.

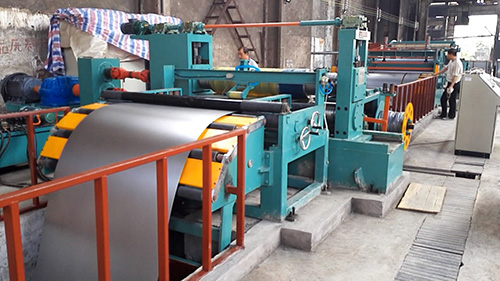

   Loop Bridge + Damping

•

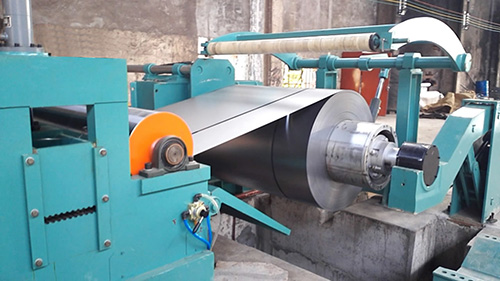

  Recoiler
