RT44Q-1.5×1250 Simple Slitting Machinery
Name: Simple Slitting Machinery
Model: RT44Q-1.5×1250
We can also supply the customized machines.

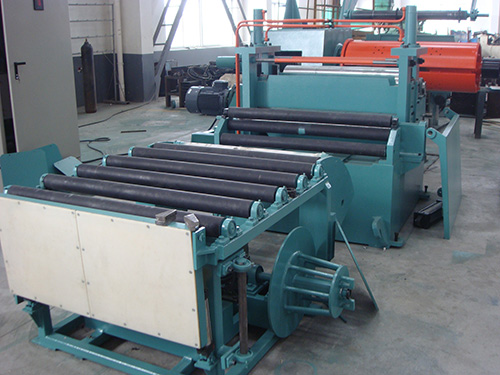

RT44Q Simple Slitting Line (i.e. Mini Slitting Machine / slitter line) is used for processing the CR, pre-painted or galvanized steel coils less than 1.5mm thickness into narrow steel strip coils with desired width.
Then the strips can be used for milling, welding pipe, cold bend forming, stamping as billet.
We can also supply the Metal Coil Sheet Slitting Machine (0~120m/min), different type of cut to length lines, slitting and cut to length combined line.

•

Material	Cold Rolled Steel Coil; Galvanized Steel Coil Pre-paint Steel Coil
Thickness	0.3-1.5mm
Width	1000 / 1250 / 1300 / 1500 mm
Weight	10 / 15 / 20 / 25 T
Speed	0~40m/min

1.

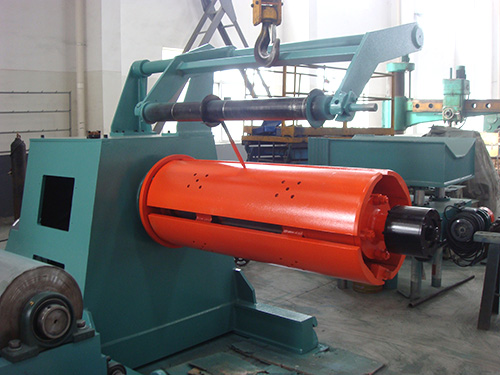

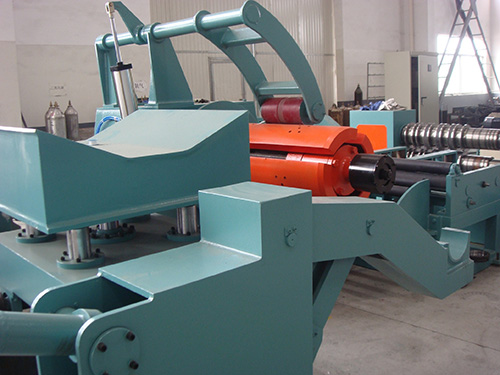

   Decoiler

2.

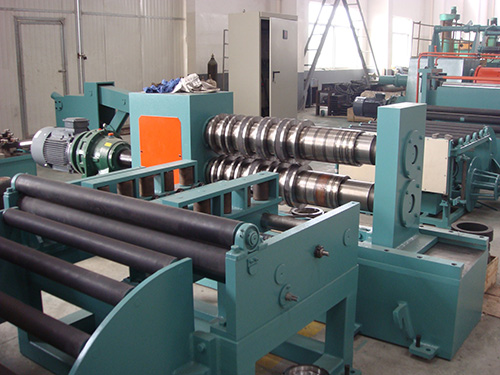

   Slitter

3.

   Scrap Recoiler + Damping

1.

   Recoiler

2.

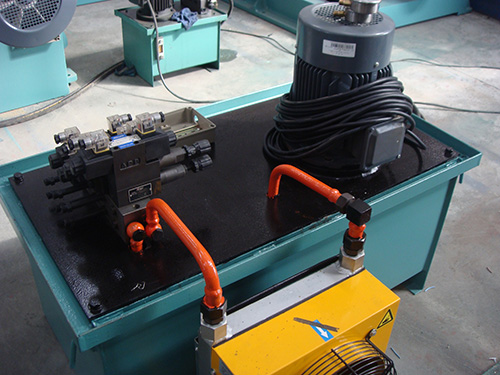

   Hydraulic Station

3.

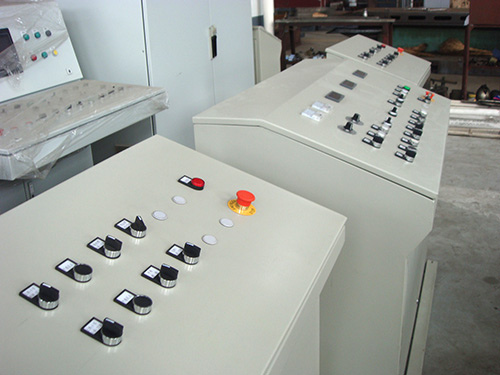

   Electric Control System
