RTHS-12×2000 HR Steel Slitting Machine
Name: HR Steel Slitting Machine
Model: RTHS-12×2000
We can also supply the customized machines.

This Slitting Sheet Production Line is professional equipment which used for slitting the wide raw coil into narrow strips of HR ( thickness: from 4mm to 20mm) in order to prepare material for subsequent processing as milling, pipe welding, cold forming, punch forming, etc.
It is mainly composed of the decoiler, pinch roll and leveler, slitter, recoiler etc., accompany of the feeder, side guider, conveyor, shear, scrap recoiler etc.

•

Material	Hot Rolled Steel Coil
Thickness	1-4mm; 1.5-5mm; 2-6mm; 2-8mm; 2-10mm; 3-12mm; 4-16mm; 6-20mm
Width	1600 / 1850 / 2000/ 2200 / 2500mm
Weight	20 / 25 / 30 / 35 T
Speed	0~25m/min

1.

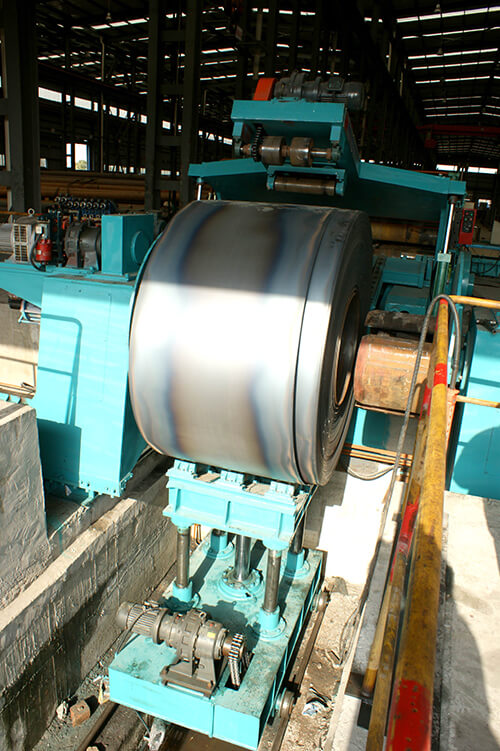

   Decoiler

2.

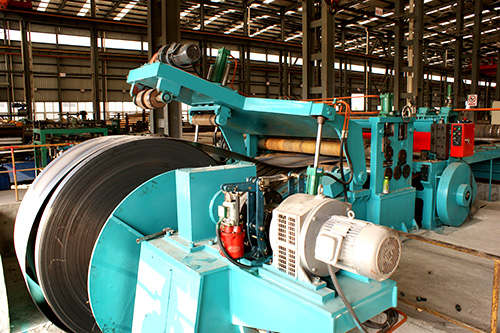

   Snubber roller + Pinch Roll

3.

   Pre-Leveler + Shear

1.

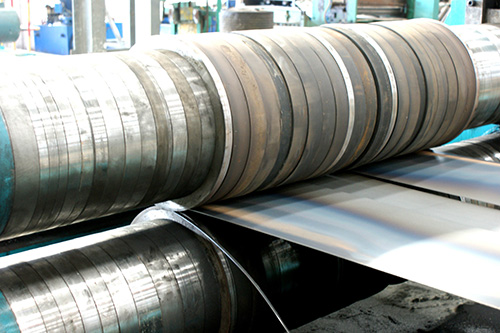

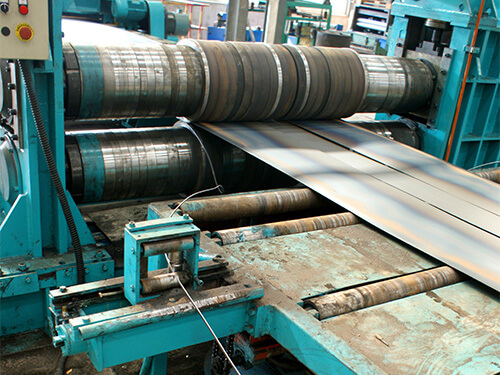

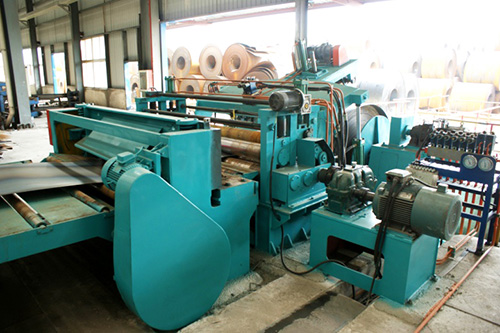

   Slitting Machine

2.

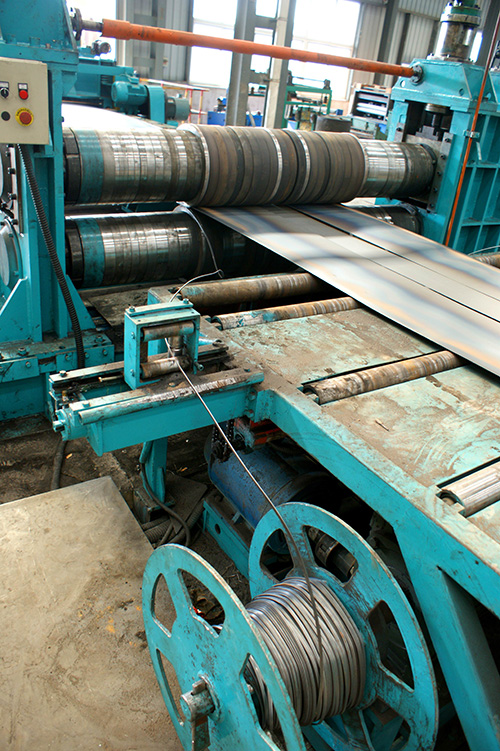

   Scrap Recoiler

3.

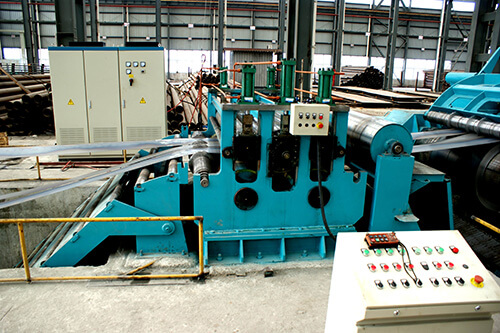

   Loop Bridge

1.

   Damping

2.

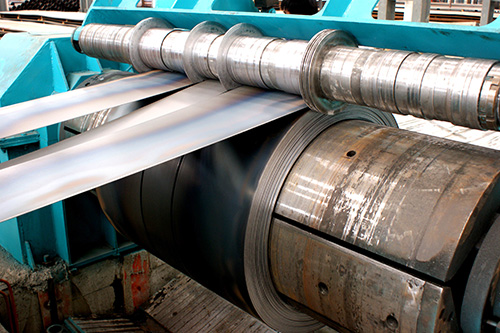

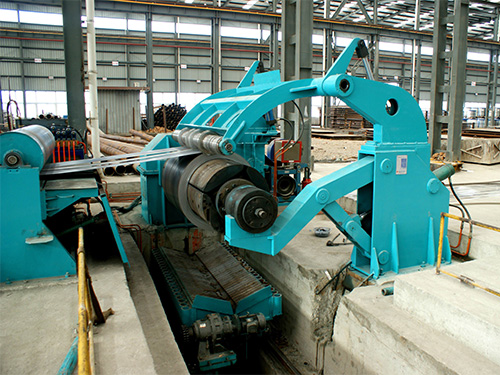

   Recoiler

3.

   Unload Cart

•

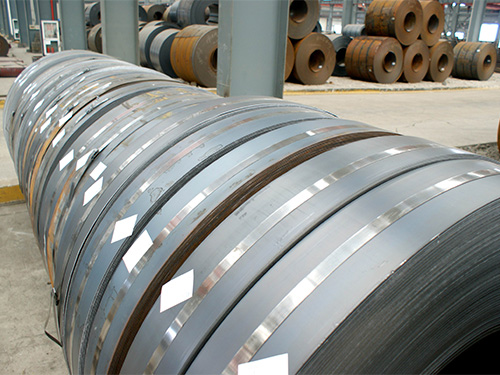

  Finished Strip Coils
