RTLC-2×1600 Simple Cut to Length Line
Name: Simple Cut to Length Line
Model: RTLC-2×1600
We can also supply the customized machines.

RTLC steel sheet leveling machine & Economic Shearing Line (0-24m/min leveling speed) (i.e. Cut to Length Line, leveling line or blanking line) is used for processing the CR/HR steel coils less than 3mm thickness through decoiling, leveling & cutting then turned into flattened plate with desired length.
It takes the centralized control with CNC control system. The cutting length, speed, pieces are all designed & controlled by the program.
When it works automatically, the computer controls the whole process of leveling & shearing to compensate the error.
When the need shearing number is reached the line can stop automatically.
The line speed can be adjusted, it has a gauge with high precision, and whole line can work automatically and operate easily, smooth sheet can be made.
This kind of economic shearing line/ cut to length line is Start-stop style. We can also supply the high speed cut to length line, rotary flying shear style cut to length line (non-stop cutting), heavy duty cut to length line, stainless steel cut to length line etc.

Storage Platform ---- Coil Lifter ---- Hydraulic Decoiler ---- Snubber Roller ---- Pinch Roll ---- Loop Bridge ---- Side Guide Roller ---- Precision Leveler ---- Measuring Roller ---- Shearer ---- Conveyor ---- Stacker ---- Unload Cart

•

Material	Cold Rolled Steel Coil ; Galvanized Steel Coil Pre-paint Steel Coil; Stainless Steel Coil
Thickness	0.3-3.0mm
Width	1000 / 1250 / 1300 / 1500 / 1600 / 2000mm
Weight	10 / 15 / 20 / 25 T
Speed	0~80m/min ; 0~50m/min ; 0~24m/min

1.

   Decoiler

2.

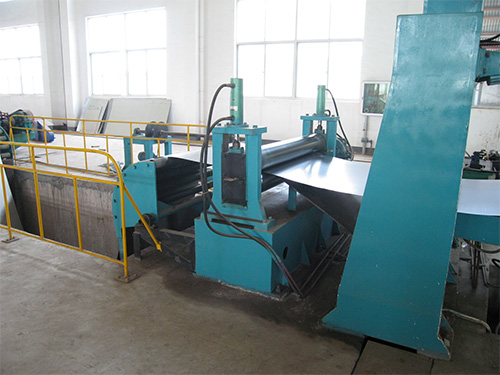

   Pinch Roll + Loop Bridge

3.

   Leveler & Measuring

1.

   Shear & Conveyor

2.

   Stacker
