RTCS Slitting and Cutting Line
Name: Slitting and Cutting Line
Model: RTCS
We can also supply the customized machines.

RTCS Slitting and Cutting Line is a Combined Line with Cutting and Slitting functions. It can cut the big coil into small strip coils with desired width, as well as cut to big coil into sheet plates with desired length.

SL + CTL

•

Slitting (from coil to strip coils with desired width)
Coil Lifter ---- Cantilever Decoiler (with Support Arm) ---- Pinch Roll and 4-HI 17-rolls Leveler (with Snubber Roller) ---- Hydraulic Loop Bridge ---- Side Guide Device ---- Slitting ---- Scrap Recoiler ---- Hydraulic Loop Bridge ---- Pre-separating and Damping Device ---- Recoiler ---- Hydraulic Unload Car
Cut to length (from coil to sheets with desired length)
Coil Lifter ---- Cantilever Decoiler (with Support Arm) ---- Pinch Roll and 4-HI 17-rolls Leveler (with Snubber Roller) ---- Hydraulic Loop Bridge ---- Side Guide Device ---- Hydraulic Loop Bridge ---- Side Guide Device ---- 5-roll Precision Leveler & Servo Measuring ---- Shearing Machine ---- Conveyor ---- Pneumatic Stacker ---- Unload Cart

CTL + SL

•

Cut to length (from coil to sheets with desired length)
Coil Lifter ---- Cantilever Decoiler (with Support Arm) ---- Pinch Roll and 4-HI 17-rolls Leveler (with Snubber Roller) ---- Hydraulic Loop Bridge ---- Side Guide Device ---- Precision Leveling & Measuring ---- Shearing Machine ---- Conveyor ---- Hydraulic Lifting Platform
Slitting (from coil to strip coils with desired width)
Coil Lifter ---- Cantilever Decoiler (with Support Arm) ---- Pinch Roll and 4-HI 17-rolls Leveler (with Snubber Roller) ---- Hydraulic Loop Bridge ---- Side Guide Device ---- Slitting ---- Scrap Recoiler ---- Loop Bridge ---- Pre-separating and Damping Device ---- Recoiler ---- Hydraulic Unload Cart
Slitting & cut to length (from coil to narrow sheets with desired length and width)
Coil Lifter ---- Cantilever Decoiler (with Support Arm) ---- Pinch Roll and 4-HI 17-rolls Leveler (with Snubber Roller) ---- Hydraulic Loop Bridge ---- Side Guide Device ---- Slitting ---- Precision Leveling & Measuring ---- Scrap Recoiler ---- Shearing Machine ---- Conveyor ---- Hydraulic Lifting Platform

Material	Cold Rolled Steel Coil ; Galvanized Steel Coil; Pre-paint Steel Coil
Thickness	0.4-2.0mm; 0.5-3.0mm ; 1-4mm; 1.5-5mm
Width	1250 / 1300 / 1500 / 1600mm
Weight	10 / 15 / 20 / 25 T
Speed	0~30m/min

1.

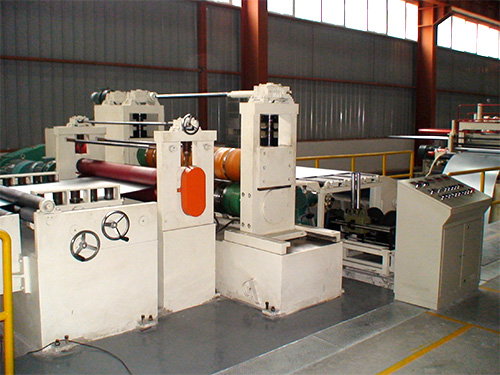

   Decoiler, Pinch Roll, Leveler

2.

   Loop Bridge

3.

   Side Guide

1.

   Slitting

2.

   Damping

3.

   Recoiler

1.

   Precision Leveler, Shear

2.

   Conveyor

3.

   Stacker

•

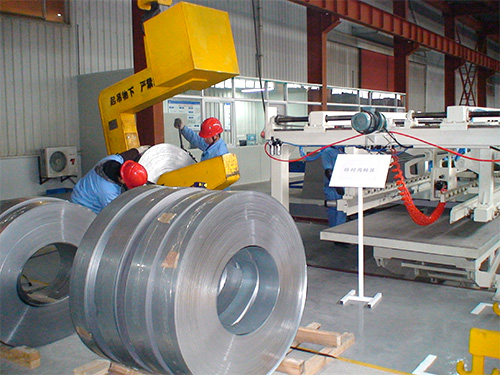

  Finished Products
