RTHC-16×1800 Cut to Length Machinery
Name: Cut to Length Machinery
Model: RTHC-16×1800
We can also supply the customized machines.

This line is professional equipment is used for processing the hot rolled steel coil into the desired length steel plate ( thickness: from 4mm to 25mm) and stacking them in order through decoiling, leveling, measuring and shearing.
It is mainly composed of the decoiler, pinch roll and leveler, length controller, shearer and stacker etc., accompany of the feeder, side guider, conveyor etc.
For "SS" or "P+O" material, auto stacker will work for them. Edge trimming and scrap recoiler is optional for material request.

Storage Platform ---- Coil Lifter ---- Decoiler ---- Snubber Roller + Pinch Roll + Pre-Leveler ---- Conveyor ---- Pinch Roll ---- Side Guide Device ---- Leveling Machine ---- Measuring Roller ---- Shearing Machine ---- Conveyor and Pneumatic Pinch Roll ---- Unload Cart

•

No.	Item	Qty
1	Coil Platform	2 Pcs
2	Hydraulic Coil Lifter	1 Set
3	Hydraulic Decoiler	1 Set
4	Snubber Roller; Pinch Roll + Pre-Leveler	1 Set
5	Conveyor	1 Set
6	Pinch Roll	1 Set
7	Side Guide	1 Set
8	Levelling Machine	1 Set
9	Measuring (Encoder)	1 Set
10	Shear & Scrap Cart	1 Set
11	Conveyor with Pinch	1 Set
12	Unload Cart	1 Set
13	Hydraulic System	1 Set
14	Pneumatic System	1 Set
15	Electric System	1 Set

Material	Hot Rolled Steel Coil
Thickness	1-4mm; 2-6mm; 2-8mm; 2-10mm; 3-12mm; 4-16mm; 6-20mm; 8-25mm
Width	1600 / 1850/ 2000/ 2200 / 2500mm
Weight	20 / 25 / 30 / 35 T
Speed	0~18m/min

1.

   Hydraulic Decoiler

2.

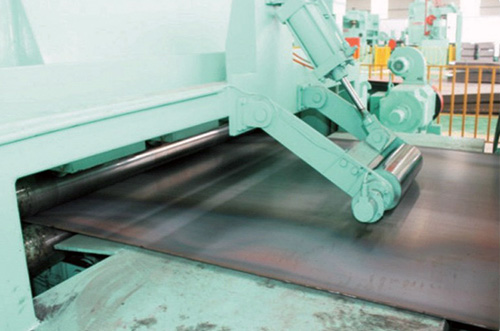

   Pinch Roll + Leveler

3.

   Loop Bridge

1.

   Side Guide + NC Precision Leveling and Measuring

2.

   Conveyor + Lifting Platform

3.

   Stacker and Unload Car

•

  Stacker and Unload Car
