Features:
CR (Cold Rolled Steel) slitting machine is used to process metal coils through decoiling, slitting, & turned into steel strips with desired width.
1. This Coil Processing Line is used for slitting steel coils with different specifications (width/thickness) to be needed width strips. The main working flow is: decoiling – leveling – slitting – recoiling.
2. This Steel Slitting Line is reasonable in layout, easy operation, high level of automation, high productivity which could processing all kinds of CR and HR coil, silicon coil, stainless coil, colored coil, galvanize coil or painted coil.
3. This Slitting Recoiling Line is broadly applying in metal plate processing industry, like car, container, household appliance, packing, construction material, etc.
4. It is composed of coil car, decoiler, slitter, scrap recoiler, shearer cutting coil head or tail, tension pad and recoiler, etc. As well as pendulum middle bridge, pinch device.
5. It is an auto coil processing equipment which integrates mechanical, electrical, hydraulic, and pneumatic all together.
Process Flow:
Machine Configuration:
No. | Item | Qty |
1 | Storage Platform | 1 pcs |
2 | Coil Lifter | 1 set |
3 | Hydraulic Cantilever decoiler | 1 set |
4 | Snubber Roller | 1 set |
5 | Pinch roll & leveler | 1 set |
6 | Shearing machine | 1 set |
7 | Loop bridge NO.1 | 1 set |
8 | Side Guide Roller | 1 set |
9 | Slitting Machine | 1 set |
10 | Pressing Device for Tail Tension Plate | 1 set |
11 | Scrap Recoiler | 1 set |
12 | Loop bridge NO.2 | 1 set |
13 | Separating Device | 1 set |
14 | Damping Device | 1 set |
15 | Pressing Device | 1 set |
16 | Recoiler | 1 set |
17 | Hydraulic Support Arm | 1 set |
18 | Unload Cart | 1 set |
19 | Hydraulic + Pneumatic System | 1 set |
20 | Electric System | 1 set |
Technical Parameter:
Material | Cold rolled steel coil ; Galvanized steel coil Pre-paint steel coil; Stainless steel Coil |
Thickness | 0.3-3.0mm |
Width | 1000 / 1250 / 1300 / 1500 / 1600 / 2000mm |
Weight | 10 / 15 / 20 / 25 T |
Speed | 0~120m/min |

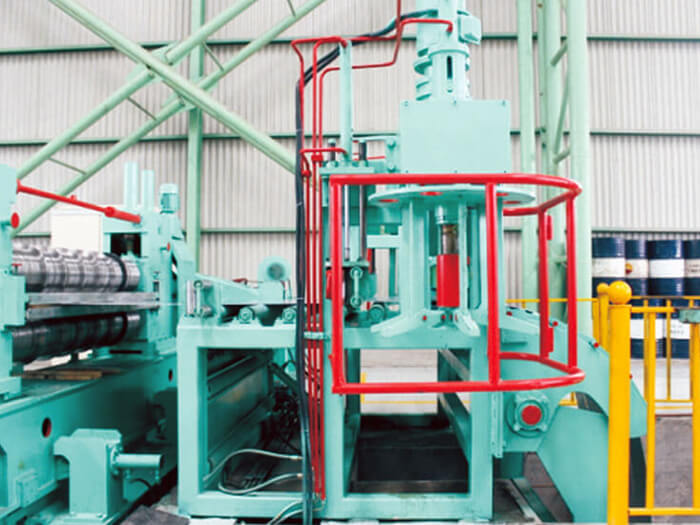

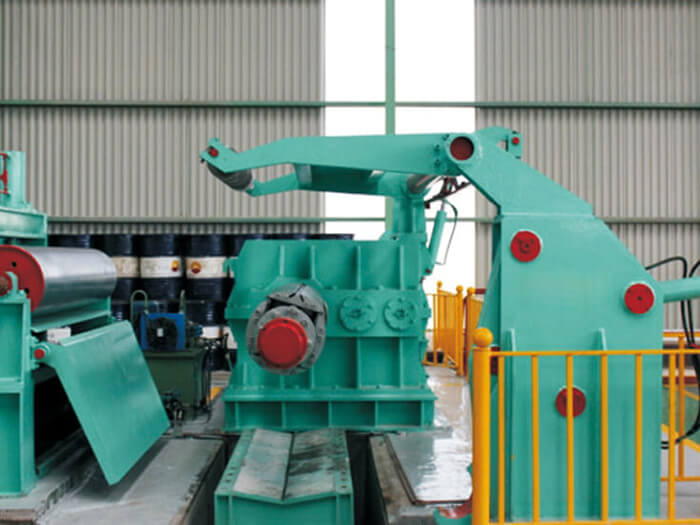

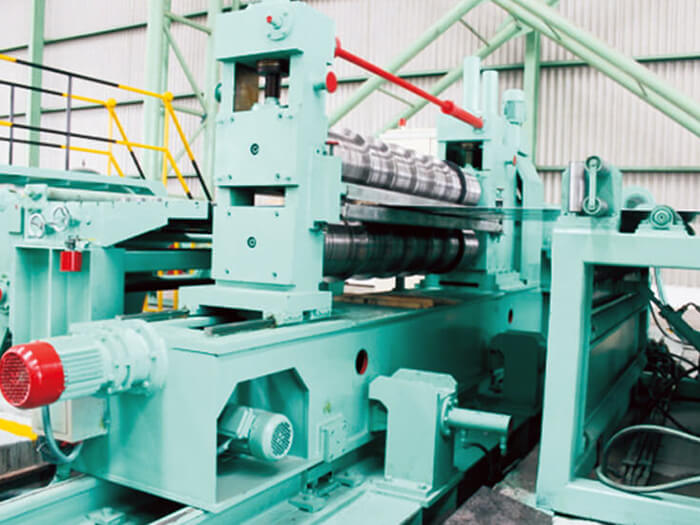

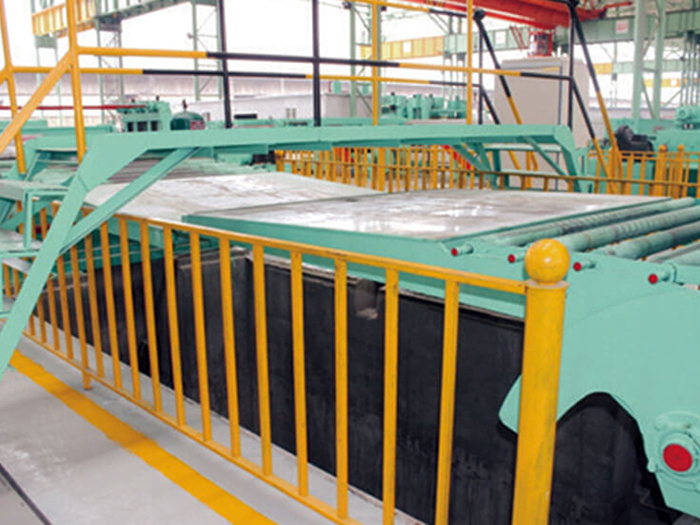

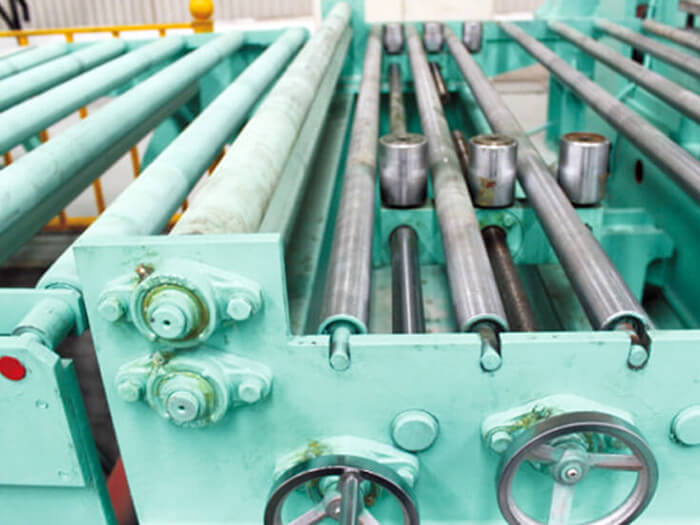

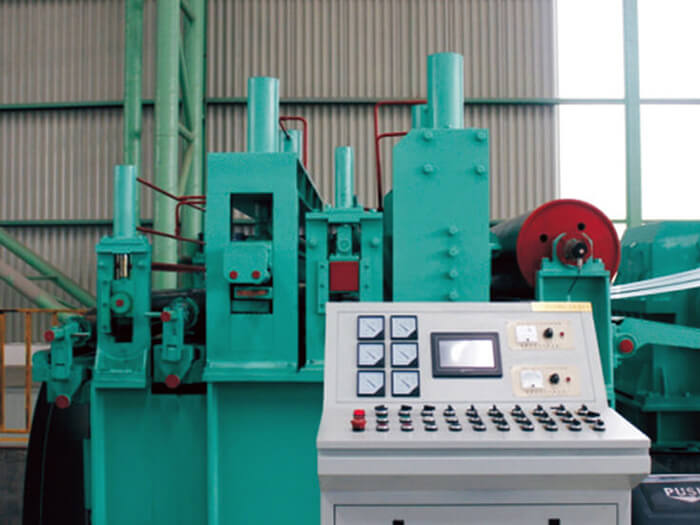

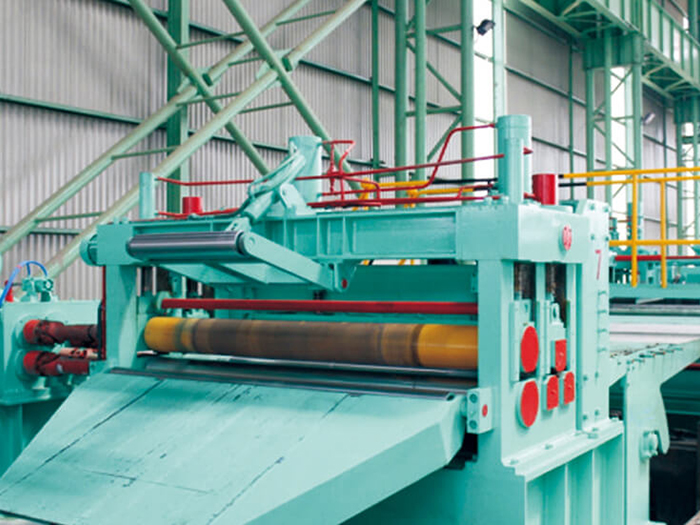

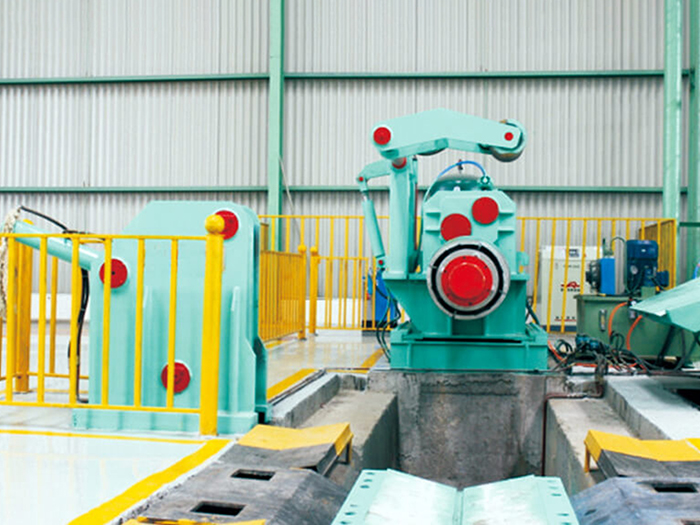

Photos for Reference:
