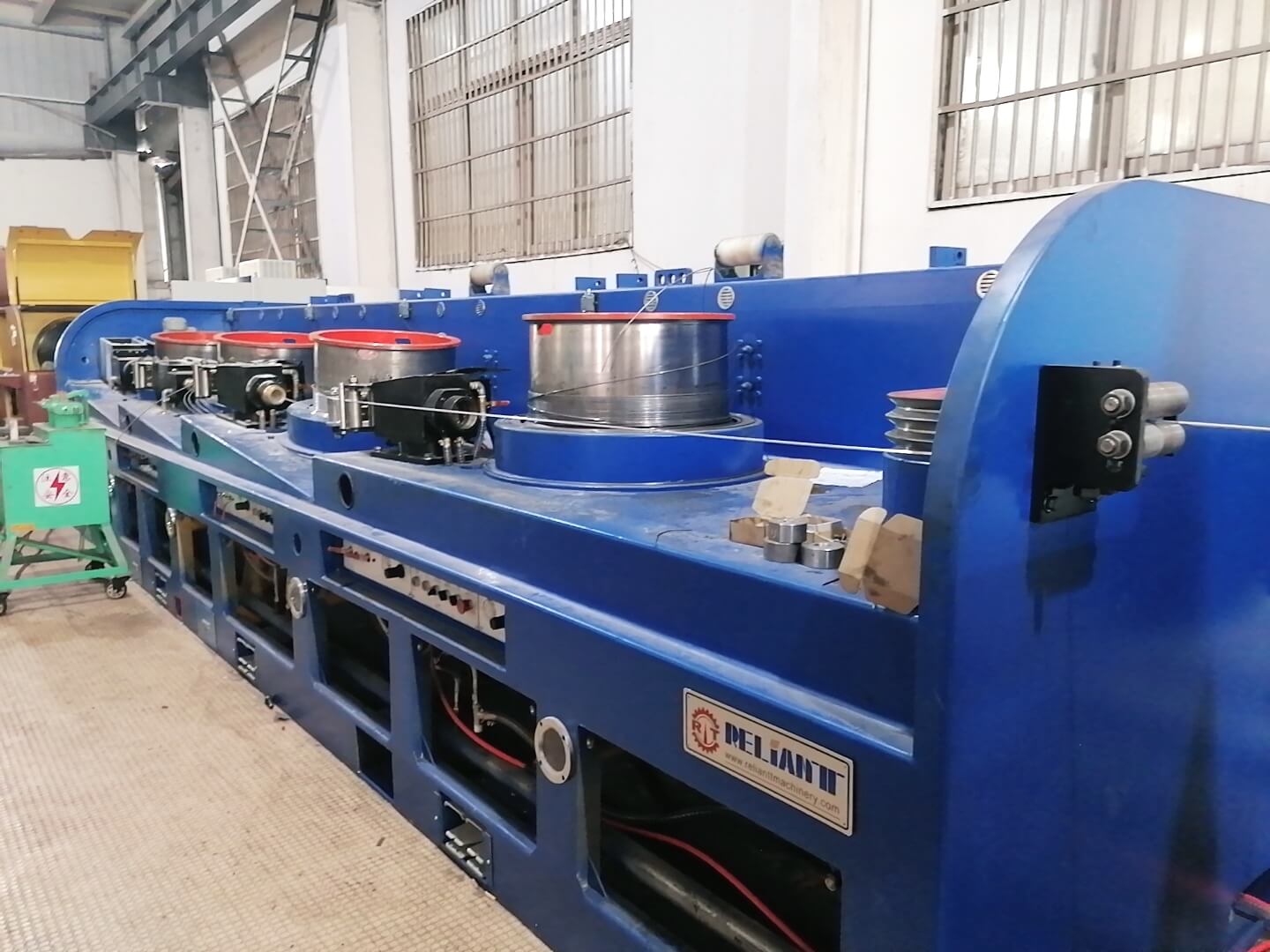

Features:
High precision! Multifunction!
It can draw out not only the common round shape wire, but also the special shape wire.
It applies to low, medium, high carbon steel wire, galvanizes steel wire, stainless steel wire, and alloy steel wire etc.
The drawing wire is mainly used for pre-stressed steel wire, steel wire strand, steel wire cord, tire wire, spring wire, wire rope, gas welding wire, arc welding wire, wire fence panel etc.
Process Flow:
Lifting pulley hydraulic pay-off → Electric wire descaling machine → Sand belt machine+ dust cleaner → Straight line wire drawing machine → Coiler take up →Traction machine→ High speed hydraulic straightening and cutting machine
Technical Parameter:
| Model | Capstan dia.(mm) | Die Nos. (n) | Motor power (kW) | Max. Input diameter (mm) | Min. Output dia. (mm) | Max. Drawing speed (m/s) | |
| Low carbon | High carbon | ||||||
| LZ560 | 560 | 2-14 | 22-45 | 7.0 | 6.5 | 1.4 | 20-15 |
| LZ600 | 600 | 2-12 | 30-45 | 8.0 | 7.0 | 1.6 | 18-12 |
| LZ800 | 800 | 2-10 | 47-75 | 12 | 10 | 2.6 | 16-8 |
| LZ900 | 900 | 2-10 | 75-132 | 16 | 13 | 3.0 | 15-7 |
| LZ1000 | 1000 | 2-9 | 90-132 | 18 | 13 | 3.5 | 14-6 |
| LZ1200 | 1200 | 2-9 | 90-160 | 20 | 16 | 4.0 | 12-6 |
| LZ1400 | 1400 | 2-6 | 110-200 | 25 | 18 | 4.5 | 8-5 |
| LZ200 | 200 | 2-16 | 5.5 | 2.5 | 2.2 | 0.25 | 24 |
| LZ250 | 250 | 2-16 | 7.5 | 3.0 | 2.6 | 0.4 | 24 |
| LZ300 | 300 | 2-16 | 7.5 | 3.5 | 2.8 | 0.5 | 24 |
| LZ350 | 350 | 2-14 | 11 | 4.0 | 3.5 | 0.6 | 22 |
| LZ400 | 400 | 2-14 | 15 | 4.5 | 4.0 | 0.75 | 22 |
| LZ450 | 450 | 2-14 | 22 | 5.5 | 5.0 | 0.8 | 20 |
