Features:
This line is professional equipment is used for processing the hot rolled steel coil into the desired length steel plate (thickness: from 4mm to 25mm) and stacking them in order through decoiling, leveling, measuring and shearing.
Cut-to-length, also know as a blanking line or CTL, mainly composed of the decoiler, pinch roll and leveler, length controller, shearer and stacker etc., accompany of the feeder, side guider, conveyor etc.
For "SS" or "P+O" material, auto stacker will work for them. Edge trimming and scrap recoiler is optional for material request.
Process Flow:
Storage Platform ---- Coil Lifter ---- Decoiler ---- Snubber Roller + Pinch Roll + Pre-Leveler ---- Conveyor ---- Pinch Roll ---- Side Guide Device ---- Leveling Machine ---- Measuring Roller ---- Shearing Machine ---- Conveyor and Pneumatic Pinch Roll ---- Unload Cart
Machine Configuration:
| No. | Item | Qty |
| 1 | Coil Platform | 2 Pcs |
| 2 | Hydraulic Coil Lifter | 1 Set |

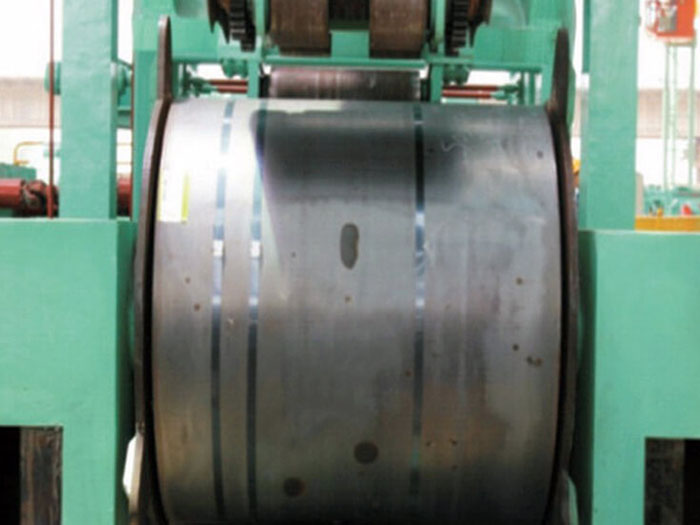

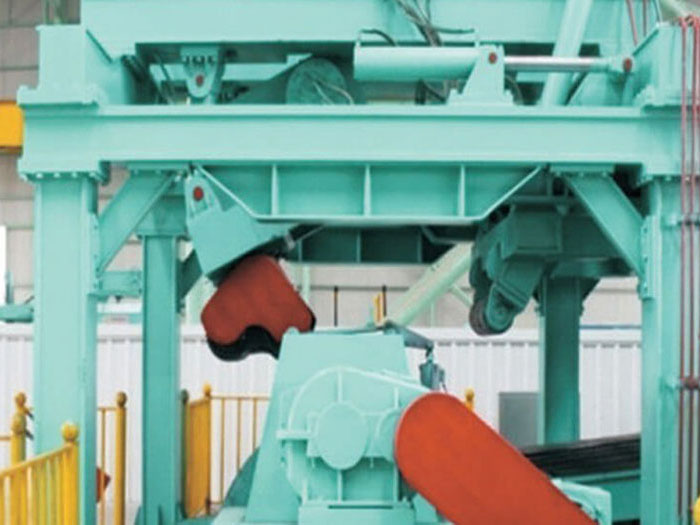

| 3 | Hydraulic Decoiler | 1 Set |

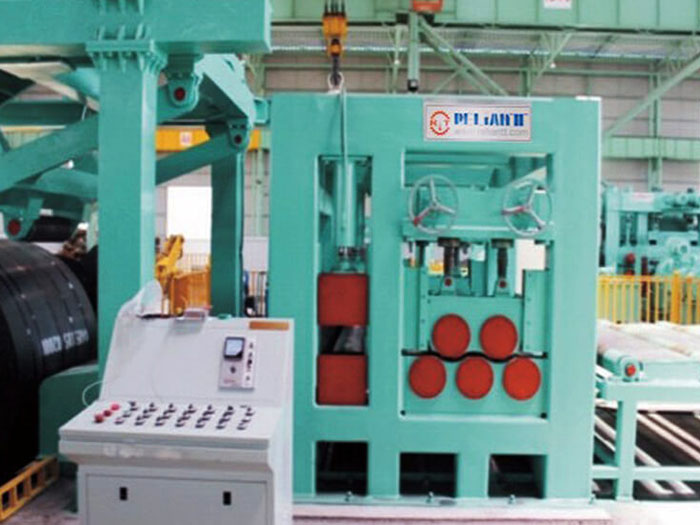

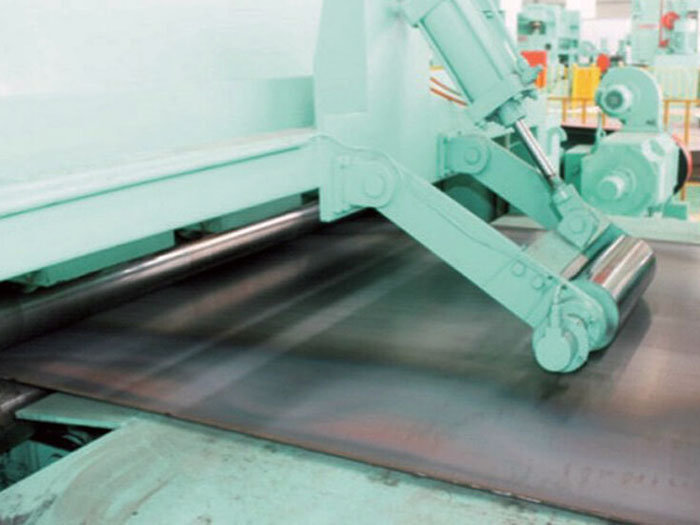

| 4 | Snubber Roller; Pinch Roll + Pre-Leveler | 1 Set |
| 5 | Conveyor | 1 Set |
| 6 | Pinch Roll | 1 Set |
| 7 | Side Guide | 1 Set |

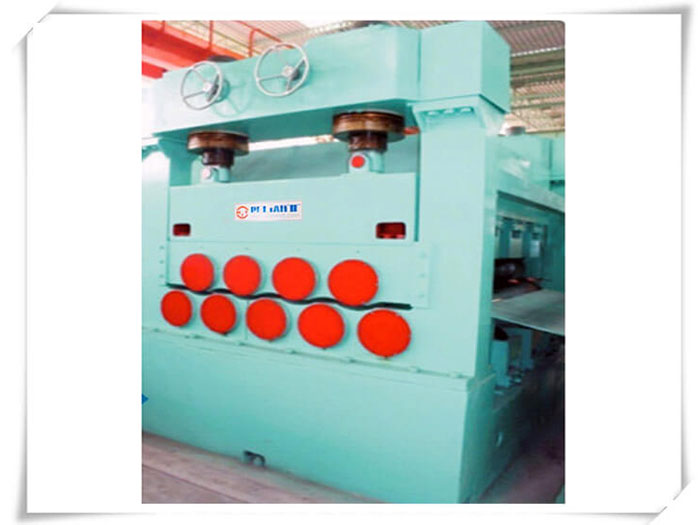

| 8 | Levelling Machine | 1 Set |
| 9 | Measuring (Encoder) | 1 Set |

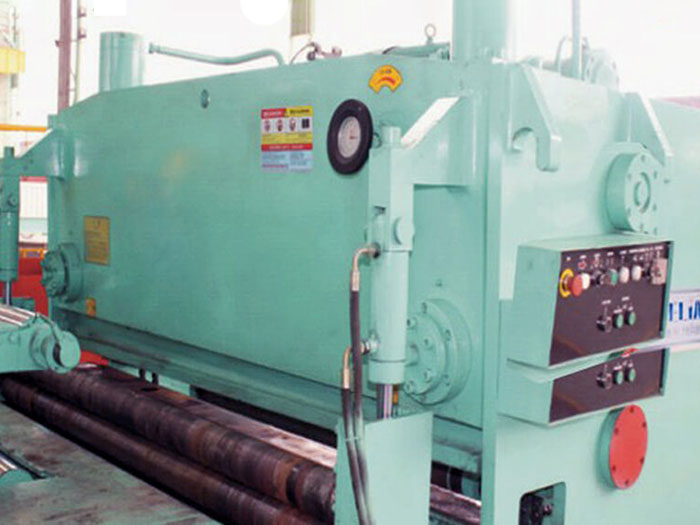

| 10 | Shear & Scrap Cart | 1 Set |
| 11 | Conveyor with Pinch | 1 Set |

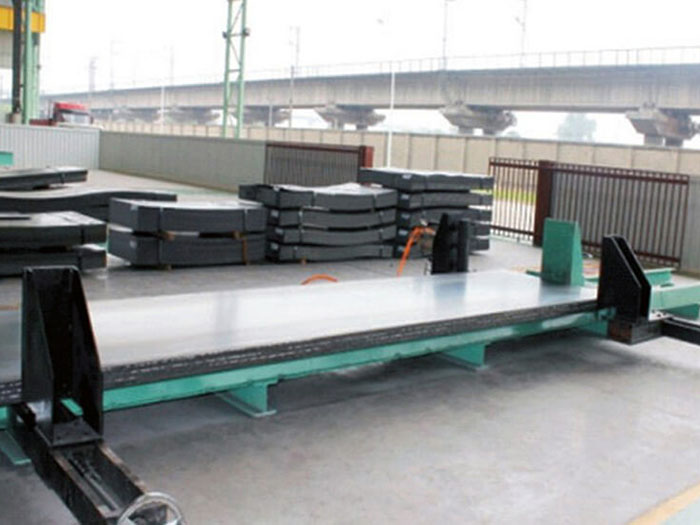

| 12 | Unload Cart | 1 Set |
| 13 | Hydraulic System | 1 Set |
| 14 | Pneumatic System | 1 Set |
| 15 | Electric System | 1 Set |
Technical Parameter:
| Material | Hot Rolled Steel Coil |
| Thickness | 1-4mm; 2-6mm; 2-8mm; 2-10mm; 3-12mm; 4-16mm; 6-20mm; 8-25mm |
| Width | 1600 / 1850/ 2000/ 2200 / 2500mm |
| Weight | 20 / 25 / 30 / 35 T |
| Speed | 0~18m/min |
Photos for Reference:
